Try Toga

Toga 是一个跨平台的Python GUI库, 支持Android和iOS,有一些简单的控件。它不像kivy那么复杂,kivy要求我们去学习 一种新的脚本语言来写界面,如果都需要学一门新的语言,那为什么我不用web的方式来开发界面呢? 所以我一直没有想去深入了解kivy。

Toga hello

所有的GUI程序大抵是相似的:

  • 一个App对象
  • 一个主窗口
  • 一些菜单和工具栏按钮(command)
  • 一些widget
  • 一些container/box
  • box和widget可以通过某些style来改变布局和样式
import toga
from toga.style.pack import COLUMN, Pack


def button_handler(widget):
    print("button handler")
    for i in range(0, 10):
        print("hello", i)
        yield 1
    print("done", i)


def action0(widget):
    print("action 0")


def action1(widget):
    print("action 1")


def action2(widget):
    print("action 2")


def action3(widget):
    print("action 3")


def action5(widget):
    print("action 5")


def action6(widget):
    print("action 6")


class Tutorial2App(toga.App):
    def startup(self):
        brutus_icon = "icons/brutus"
        cricket_icon = "icons/cricket-72.png"

        data = [("root%s" % i, "value %s" % i) for i in range(1, 100)]

        left_container = toga.Table(headings=["Hello", "World"], data=data)

        right_content = toga.Box(style=Pack(direction=COLUMN, padding_top=50))

        for b in range(0, 10):
            right_content.add(
                toga.Button(
                    "Hello world %s" % b,
                    on_press=button_handler,
                    style=Pack(width=200, padding=20),
                )
            )

        right_container = toga.ScrollContainer(horizontal=False)

        right_container.content = right_content

        split = toga.SplitContainer()

        # The content of the split container can be specified as a simple list:
        #    split.content = [left_container, right_container]
        # but you can also specify "weight" with each content item, which will
        # set an initial size of the columns to make a "heavy" column wider than
        # a narrower one. In this example, the right container will be twice
        # as wide as the left one.
        split.content = [(left_container, 1), (right_container, 2)]

        # Create a "Things" menu group to contain some of the commands.
        # No explicit ordering is provided on the group, so it will appear
        # after application-level menus, but *before* the Command group.
        # Items in the Things group are not explicitly ordered either, so they
        # will default to alphabetical ordering within the group.
        things = toga.Group("Things")
        cmd0 = toga.Command(
            action0,
            text="Action 0",
            tooltip="Perform action 0",
            icon=brutus_icon,
            group=things,
        )
        cmd1 = toga.Command(
            action1,
            text="Action 1",
            tooltip="Perform action 1",
            icon=brutus_icon,
            group=things,
        )
        cmd2 = toga.Command(
            action2,
            text="Action 2",
            tooltip="Perform action 2",
            icon=toga.Icon.DEFAULT_ICON,
            group=things,
        )

        # Commands without an explicit group end up in the "Commands" group.
        # The items have an explicit ordering that overrides the default
        # alphabetical ordering
        cmd3 = toga.Command(
            action3,
            text="Action 3",
            tooltip="Perform action 3",
            shortcut=toga.Key.MOD_1 + "k",
            icon=cricket_icon,
            order=3,
        )

        # Define a submenu inside the Commands group.
        # The submenu group has an order that places it in the parent menu.
        # The items have an explicit ordering that overrides the default
        # alphabetical ordering.
        sub_menu = toga.Group("Sub Menu", parent=toga.Group.COMMANDS, order=2)
        cmd5 = toga.Command(
            action5,
            text="Action 5",
            tooltip="Perform action 5",
            order=2,
            group=sub_menu,
        )
        cmd6 = toga.Command(
            action6,
            text="Action 6",
            tooltip="Perform action 6",
            order=1,
            group=sub_menu,
        )

        def action4(widget):
            print("CALLING Action 4")
            cmd3.enabled = not cmd3.enabled

        cmd4 = toga.Command(
            action4,
            text="Action 4",
            tooltip="Perform action 4",
            icon=brutus_icon,
            order=1,
        )

        # The order in which commands are added to the app or the toolbar won't
        # alter anything. Ordering is defined by the command definitions.
        self.commands.add(cmd1, cmd0, cmd6, cmd4, cmd5, cmd3)

        self.main_window = toga.MainWindow()
        # Command 2 has not been *explicitly* added to the app. Adding it to
        # a toolbar implicitly adds it to the app.
        self.main_window.toolbar.add(cmd1, cmd3, cmd2, cmd4)
        self.main_window.content = split

        self.main_window.show()


def main():
    return Tutorial2App("Tutorial 2", "org.beeware.toga.tutorial")


if __name__ == "__main__":
    main().main_loop()

Togo Android

跨平台到安卓上Android最难搞的还是打包,外加一些上网问题。Togo使用briefcase 进行打包。

安装

pip install briefcase

创建一个新的工程

briefcase new

如果只是想测试下,可以加--no-input,其实就是所有的都默认。

不出意外的话,就会有一些工程没法下载,咱们可以自己手动建 C:\Users\<your-user-name>\AppData\Local\BeeWare\briefcase\Cache\templates 然后在其中手动clone两个工程

  • git clone github:beeware/briefcase-android-gradle-template.git
  • git clone github:beeware/briefcase-template

之后就能顺利完成创建新工程了。

打包工程

briefcase package android -p apk

以上命令是在所有都设置好的时候才生效,现在我们来设置。

Android SDK

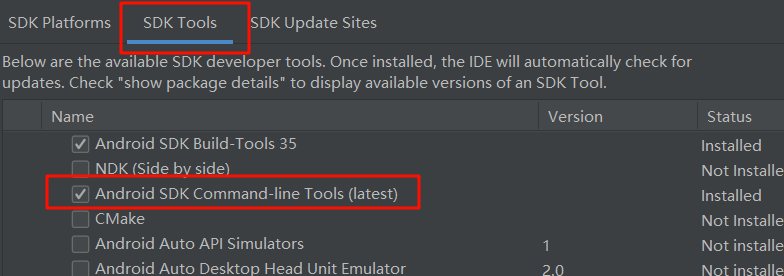

首先我建议安装Android studio, 然后在 Tools => SDK Manager 中,下载SDK,注意必须要勾选 SDK Tools 中的 Android SDK Command-line Tools /myblog/posts/try-toga/sdk.png

然后修改环境变量,将 ANDROID_HOME 设置为SDK所在目录,默认为 C:\Users\<your-user-name>\AppData\Local\Android\Sdk

JDK

briefcase目前要求JDK17,可以在微软的网站上下载, 下载完随便解压到一个地方,然后修改环境变量,将 JAVA_HOME 指向解压的目录即可

Gradle

Gradle可以从这里下载, 但是默认不是从这里下载的,由于我在下载完成前,脚本已经从官方成功下载的这个文件,所以没研究如何手动安装gradle,也许这里可以

但是gradle的镜像还是要设置的,将这个 init.gradle 文件放到 C:\Users\<your-user-name>\.gradle 中即可

签名

经过以上配置,应该能成功生成apk文件,但是如果这个时候将apk文件下载到手机中, 会提示 packageInfo is null,表示没有签名。briefcase官方文档中关于 keytool的描述根本就没法找到,经过研究,我采用下面的方式。

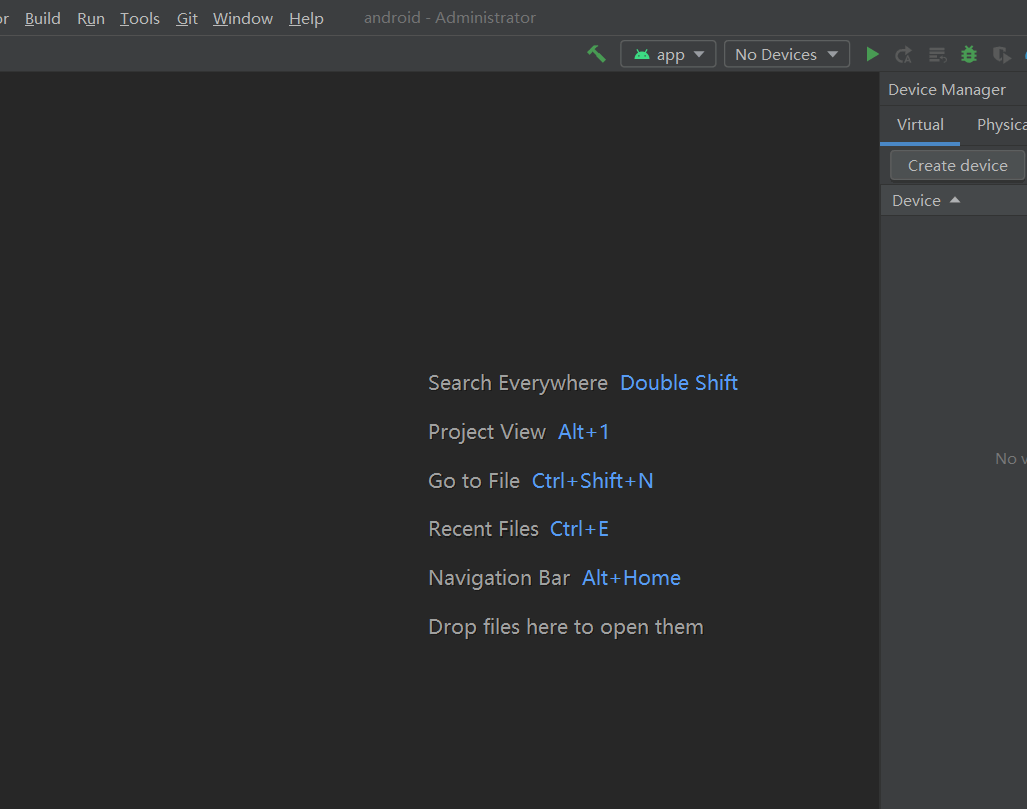

打开Android Studio,如下动图,创建一个jks文件,并在其中创建一个key,请记住 AliasPassword /myblog/posts/try-toga/new-key-store.gif

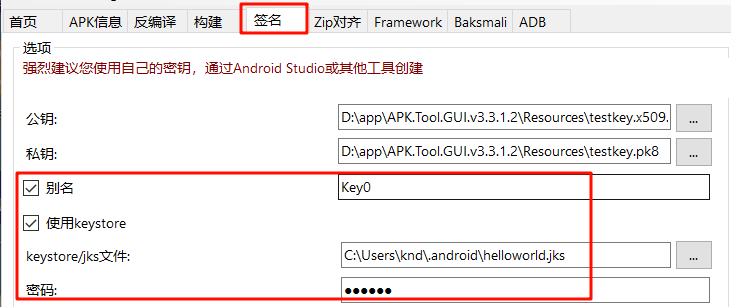

使用APK Tool签名, 先要将签名按Android Studio生成的jks来设置,如下图所示 /myblog/posts/try-toga/sign-settings.png

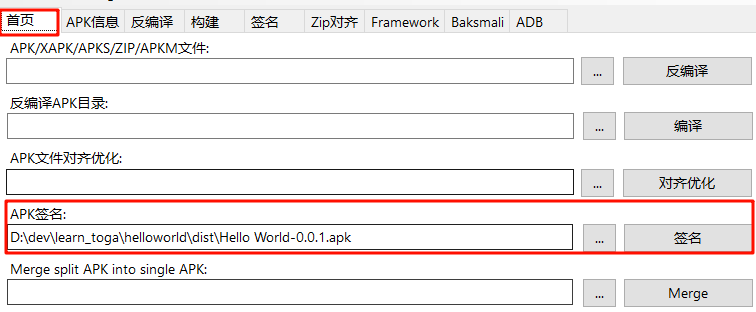

最后回到主页来,对生成的apk进行签名,签名无误后即可下载到手机中安装 /myblog/posts/try-toga/do-sign.png

结束语

我想我可以教小朋友们写自己的手机app了。

如果要处理带c扩展的库的话,还有很多问题,暂时还没有尝试,参见这里
